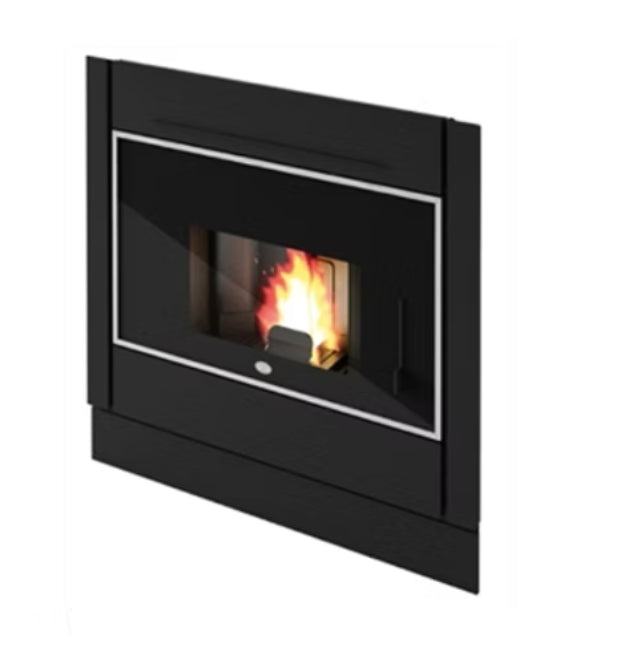

Eva Calor Saturno Inset Pellet Boiler - 18/24 kw

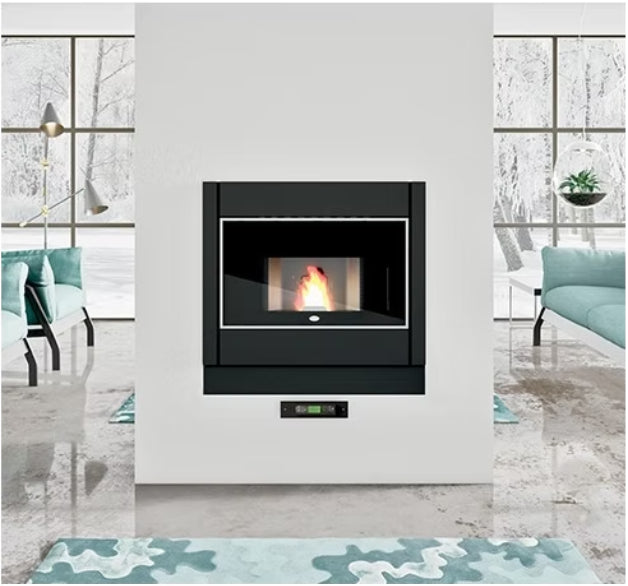

The Saturno Inset Pellet Boiler range offers a space-saving, highly efficient heating solution that integrates seamlessly into modern or traditional interiors. Designed for inset installation, these units provide reliable room and central heating with the added benefit of automation, programmable settings, and compatibility with external thermostats.

Both models are A+ rated for energy efficiency, and offer advanced safety features, customizable heat levels, and an intuitive control system.

Technical Details

18kW Model (16.5kW Nominal)

• Nominal Heat Output: 16.5 kW (13.7 kW to water / 2.8 kW to room)

• Efficiency: 91.5%

• Pellet Consumption: 1.1 – 3.8 kg/h

• Hopper Capacity: 18 kg

• Heating Area: Up to 120 m²

• Flue Outlet Diameter: 80 mm

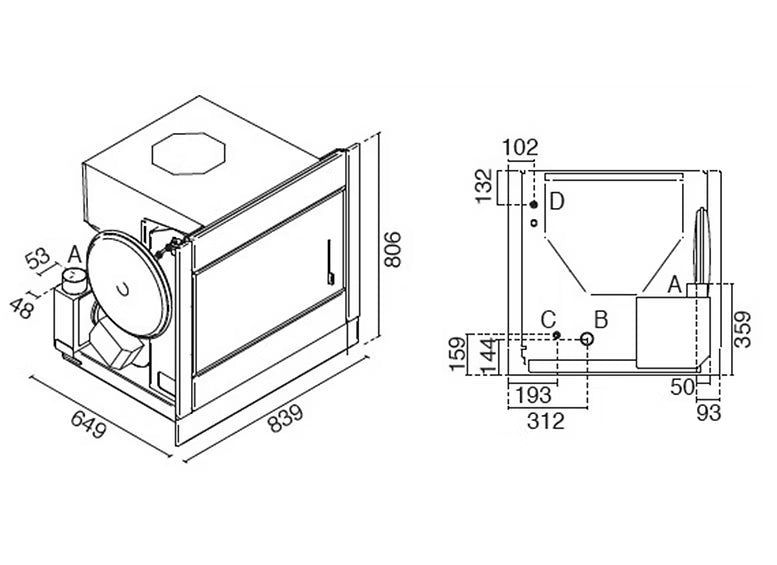

• Dimensions (mm): 875 (W) x 645 (H) x 650 (D)

• Weight: 160 kg

24kW Model (22kW Nominal)

• Nominal Heat Output: 22 kW (18.7 kW to water / 3.3 kW to room)

• Efficiency: 91.5%

• Pellet Consumption: 1.4 – 5.0 kg/h

• Hopper Capacity: 30 kg

• Heating Area: Up to 180 m²

• Flue Outlet Diameter: 80 mm

• Dimensions (mm): 915 (W) x 645 (H) x 700 (D)

• Weight: 185 kg

Features (Common to Both Models)

• Fully inset design with sliding rail for easy servicing

• 5 adjustable heat levels

• Built-in ambient room fan

• Automatic ignition and shutdown

• Programmable weekly timer

• Remote control included

• Optional Wi-Fi module for mobile control

• Suitable for sealed system installations

• Stainless steel brazier

• Glass ceramic viewing window

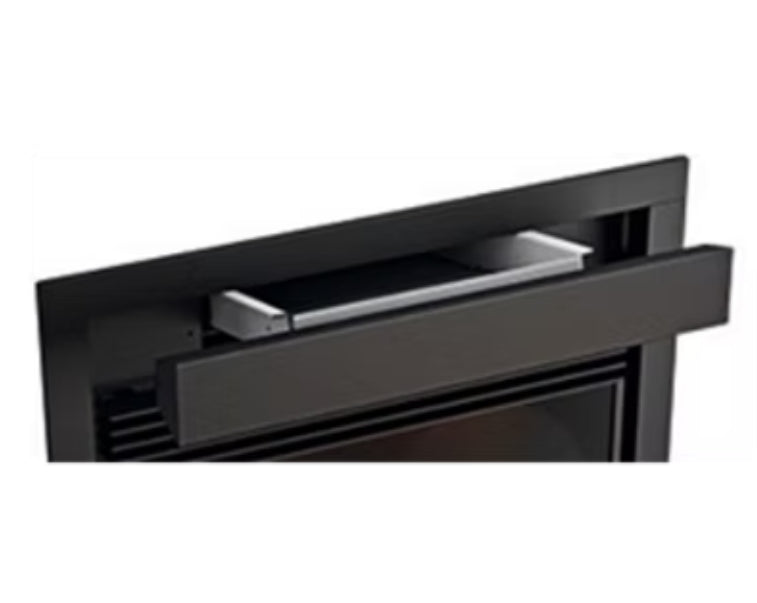

• Front-access pellet loading drawer

• Integrated ash drawer

• External thermostat compatibility

• Multiple safety features: overheat protection, pressure switch, safety thermostat
